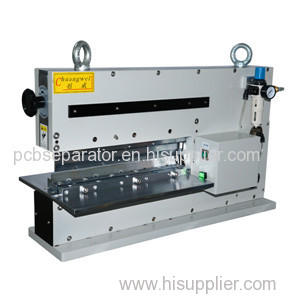

Chopper type aluminium PCB cutting machine,PCB cutting tool**CWVC-2L CWVC-2L manufacturer from China ChuangWei PCB Separator Electronic Equipment Manufactory

Product Detail

Model No.: CWVC-2L

Production Capacity: 500 sets/year

Delivery Date: Within 7days after receipt ...

Max. PCB cutting length: 330mm(Can custom made)

Means of Transport: Ocean,Land,Air

Packing: seaworthy plywood case,safe...

Brand Name: ChuangWei

***V-CUT PCB cutting machine***
1.Easy maintenance and operation
2.Thin PCB even to 0.3mm can be cut safely
3.Cutting process without vibrations du

***V-CUT PCB cutting machine***

1.Easy maintenance and operation

2.Thin PCB even to 0.3mm can be cut safely

3.Cutting process without vibrations due to pneumatic drive unit

=======================

***V-CUT PCB cutting machine specifications***

Model: CWVC-2L

Max. PCB cutting length: 330mm(Can custom made)

PCB cutting thickness: 0.3-3.5mm

Voltage and Power: 110V/220V --10W

working air pressure: 0.5-0.7Mpa

PCB cutting speed: due to operator skilled level

PCB cutting machine size: 620*230*400mm

PCB cutting Machine weight: 165kg

============================================

***V-CUT PCB cutting machine features***

1.Pneumatically driven and electromagnetic valve control.

2.Cutting process without vibrations due to pneumatic drive unit .

3.Cutting PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be cut safely.

4.Cutting operation is that operator stamps the foot pedal to cut PCB.

5.Highest components near the v groove of PCB can be up to 70mm.

6.The minimum distance is allowed to be 0.5mm betweenV groove and the electronic components.

7.Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.
