Product Detail

Model No.: CWVC-1

Production Capacity: 500 sets/year

Delivery Date: within 3 days after receipt...

Max. PCB separating length: 330mm

Means of Transport: Ocean,Land,Air

Packing: seaworthy plywood case,safe...

Brand Name: ChuangWei

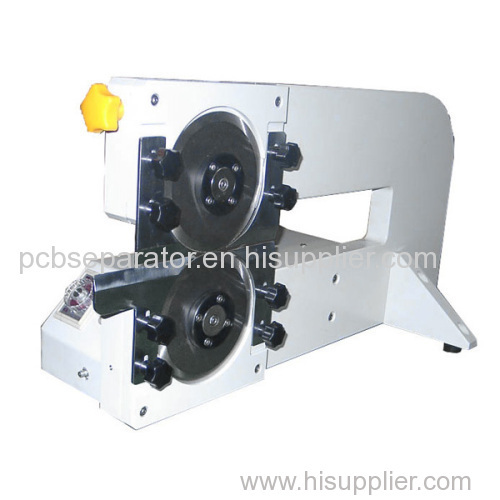

V-cut PCB separator machine
1.The price is very economical
2.Safety use and easy operation

V-cut PCB separator machine

1.The price is very economical

2.Safety use and easy operation

3.Blade can be re-grinded to use

4.Compact,fast,economical separator for PCBs with pre-scored groove

=========================================================

V-cut PCB separator machine specifications:

●Model:CWVC-1

●Max. PCB separating length:330mm

●PCB separating thickness:1.0-3.5mm

●PCB separating speed: 0~400mm/sec

●Voltage and Power: 110/220V60W

●PCB separator machine size:620X 270 X 320mm

●PCB separator machine weight:40Kg

===============================================================

V-cut PCB separator machine features:

1.The lower circular blade is driven by a motor,separates lots of PCBs without fatigue of the operator.

2.The PCB is fed between the circular blades where it is seized, transported and separated.

3.PCB separating speed can be adjusted by a knob.

4.Upper and lower circular blades can be re-used after regrinding.

5.Clearance between the blades is adjustable to ensure that the PCB is only fed through the machine in the pre-scored groove.

6.The distance between v groove and components is allowed to be 0.5mm.
