Product Detail

Model No.: CWV-1M

Production Capacity: 500 sets/year

Delivery Date: within 3 days after receipt...

Max. PCB Separation length: 460mm

Means of Transport: Ocean,Land,Air

Packing: seaworthy plywood case,safe...

Brand Name: ChuangWei

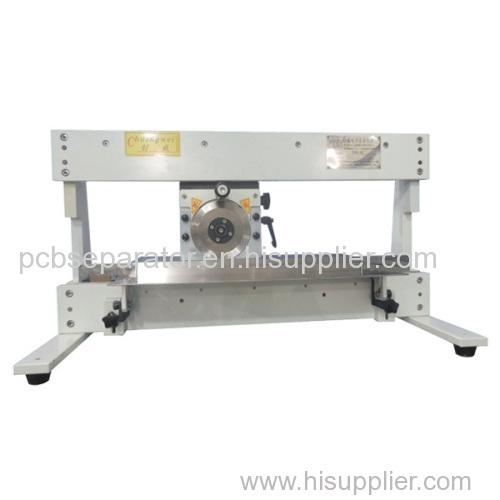

Chuangwei Manual V-CUT PCB Separator machine
1.PCB Separating controlled by hand
2.The price is very economical

Chuangwei Manual V-CUT PCB Separator machine

1.PCB Separating controlled by hand

2.The price is very economical

3.Separate the PCB with various sizes and pre-scored V groove

4.Easy maintanance and operation

5.Low bending stress,no vibration

======================================

Chuangwei Manual V-CUT PCB Separator machine specifications:

Model:CWV-1M460

Max. PCB Separation length: 460mm

PCB Separation Thickness:0.6-3.5mm

PCB Separation speed control:by hand

PCB Separator machine size: 787x400x436mm

PCB Separator machine weight: 30Kg

=======================

Model:CWV-1M720

Max. PCB Separation length:720mm

PCB Separation Thickness:0.6-3.5mm

PCB Separation speed control:by hand

PCB Separator machine size: 1027x400x436mm

PCB Separator machine weight: 45kg

===========================

Chuangwei Manual V-CUT PCB Separator machinedescriptions

1.Separation type:up component side(circular blade),down solder side(linear blade)

2.Separation for small and large PCB with pre-scored V groove

3.Separate pre-scored V groove PCB assembly without stress on either PCB or component

4.Separating speed is controlled by hand and very easy operation

5.Large stainless steel platform on both side of cutting blade prevents PCB shaking and the table height and angle could be adjustable

6.The PCB is placed with its pre-scored V groove onto the linear blade and the circular blade is then drawn by hand across the PCB

7.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.It is to ensure that the PCB is only separated in the pre-scored V groove
